## PIE 4.7 Project Continues!

It has been a while since my last update. I guess I kind of went down a bit of a rabbit hole looking for answers to the reversion issues that virtually all inertial drives have. The answers I found are useful, and everything learned has value!

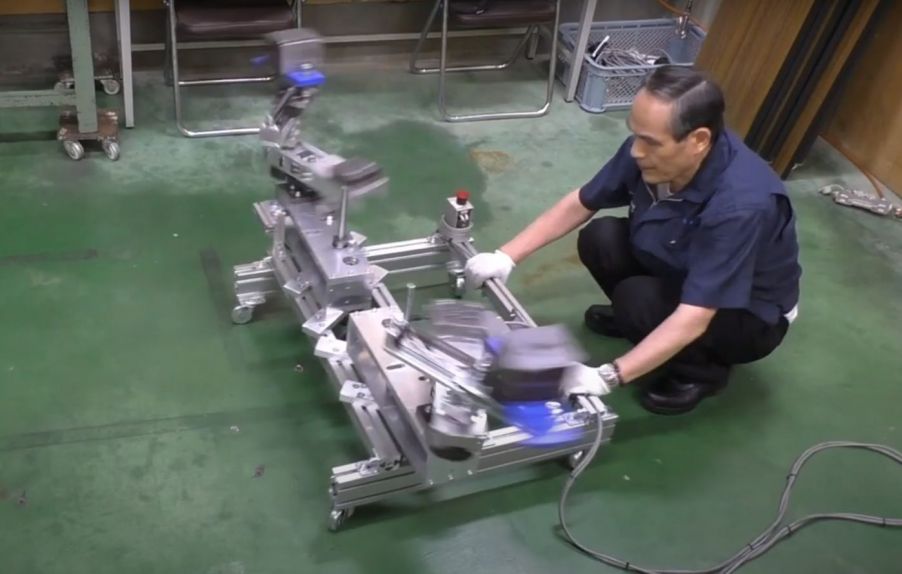

My search took me through the world of compound levers, offset drives and finally to the Tolchin/Shipov drive. The T/S drive taught me the most as it uses some of the same principals necessary in virtually ALL inertial drives, which is adding the 4th “D” (Dimension) to a gyroscopic arrangement.

4D Gyroscopes: Everyone (basically) learned about 3D in grade school. Height, depth and width or in machine shop geometric algebra, X, Y and Z axis or dimensions. The 4th D is T, or time. Time in a spinning gyroscope is measured in RPM, or revolutions per minute. Adding the 4th “dimension” to a gyro is done by rapidly and purposefully changing the RPM faster AND slower, generally within a single revolution.

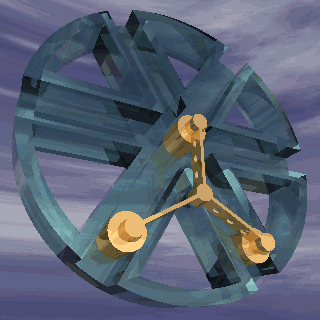

If you were to view a conventional toy-type gyroscope, you will notice a frame surrounding the flywheel and a smooth-rimmed flywheel in the center. Now, use a marker (pencil or crayon is fine) and put one dot on the rim of the flywheel. That is now our reference point. Place the gyroscope so you can see the entire rim of the frame and the rim of the flywheel. Place a mark on the frame at the top and the bottom as you are viewing it (right and left work too) and then using your finger turn the flywheel rapidly from one mark to the next, then slowly from that mark back to the beginning. That is the 4th D!!!

Imagine spinning the flywheel at 1000 RPM but installing a mechanism that will slow it to 800 RPM for one-half of each revolution, returning it to its original velocity for the other half, and you have a 4D gyroscope!

Now replace the dot on the flywheel with a small weight, and spin it fast then slow then fast then slow with every revolution one-half of it is moving fast and one-half moving slower. It might not be exactly what you desire, but there WILL be inertial propulsion derived from that device!

It is not about shuttling weights around; it is all about changing the “time base” by rapidly changing speeds during EVERY revolution! Shuttling weights can be part of that and quite often they are, unfortunately many people believe that the weight shuttling causes propulsion, when in fact it is only a component of the gyroscope that can be time-manipulated into performing propulsive work. This can be accomplished mechanically or electrically, and although those two systems may appear fundamentally different, they are like the difference between a diesel and a gas engine, they may be “fed” fuel differently and the ignition of that fuel is done differently they are still a piston & crankshaft engine (there are also rotary and turbine but I’m not going there right now).

So, keeping in mind that there are different ways of accomplishing the same basic task, I am back to the PIE 4.7 with a renewed outlook and it is definitely time to “Git ‘Er Done”!

## Revisiting and Updating the PIE 2.0 into a PIE 2.1, PIETECH P. 14

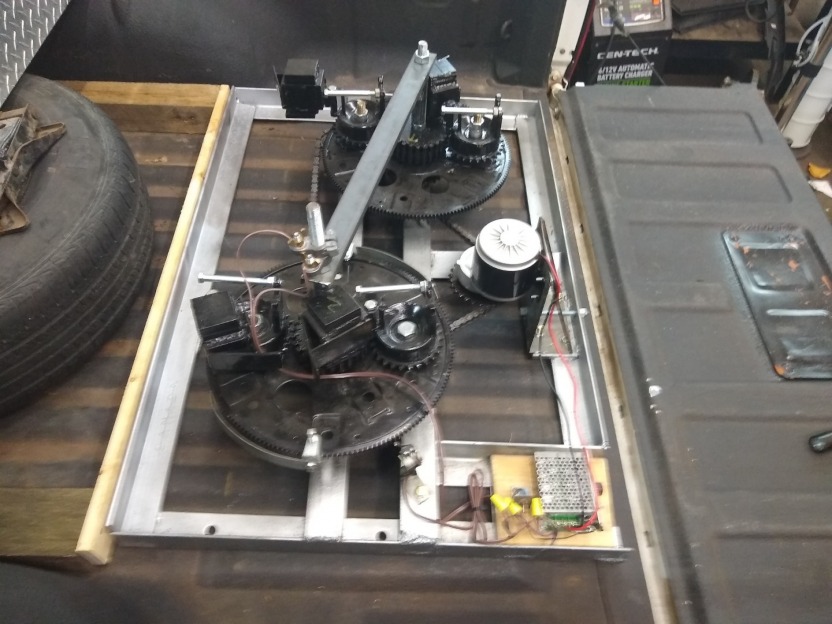

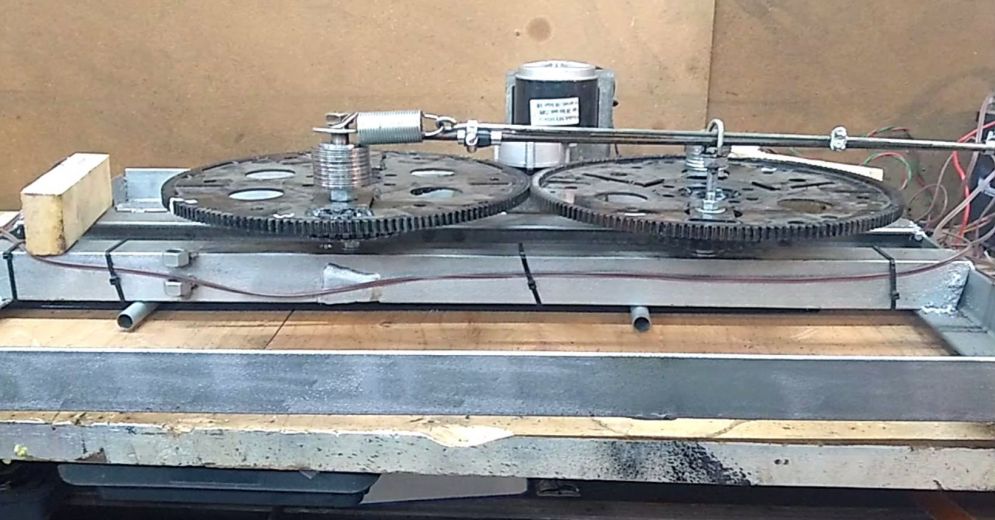

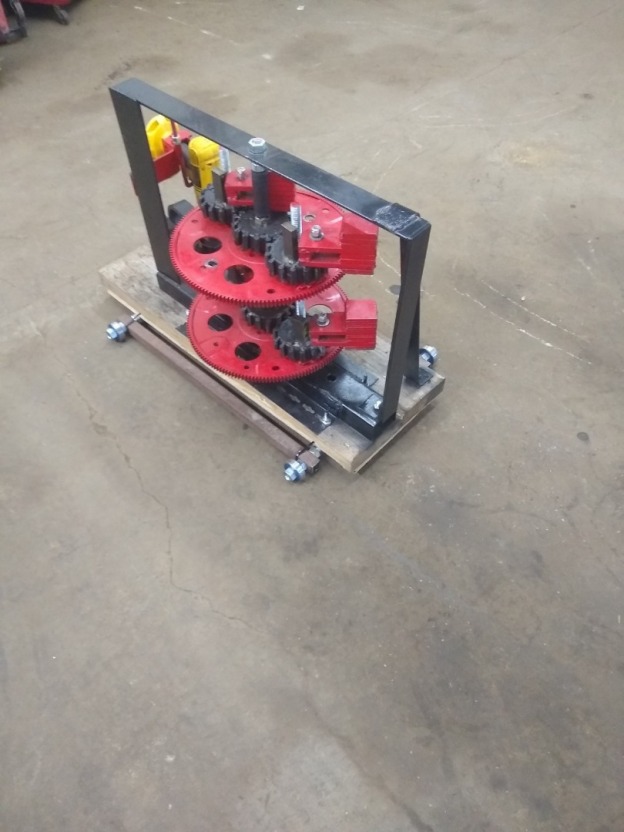

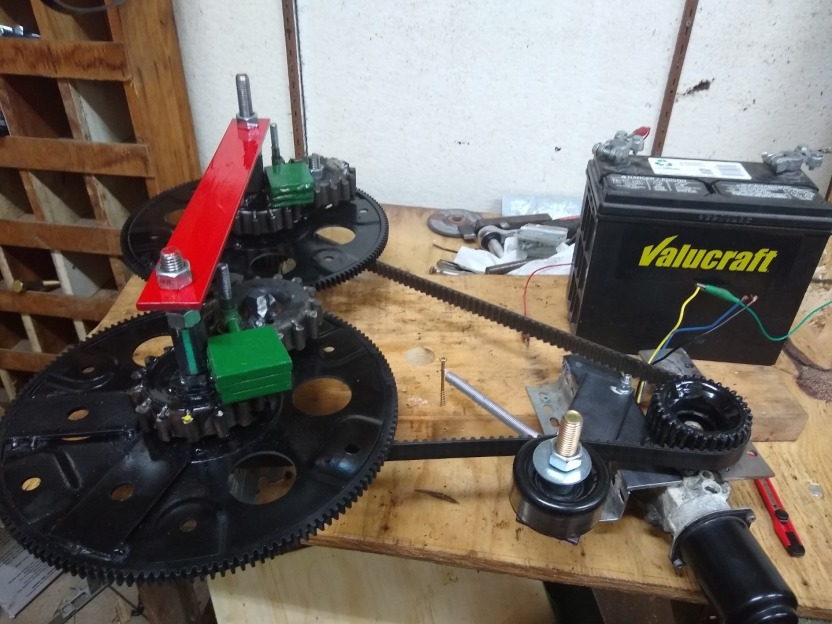

Because the PIE 2.0 was shelved without any disassembly and was kept in-tact from its last tests and demos, I decided it would be interesting to install the 24-volt electric motor and speed controller on it. It was really great to see the PIE 2.0 spring to life with a renewed vigor thanks to the powerful motor. But this was not the reason for upgrading the version number…

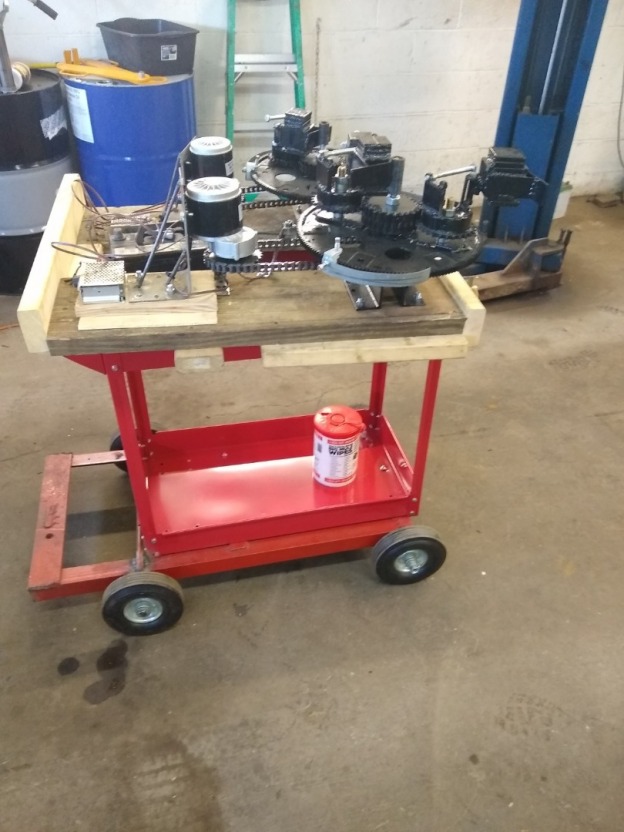

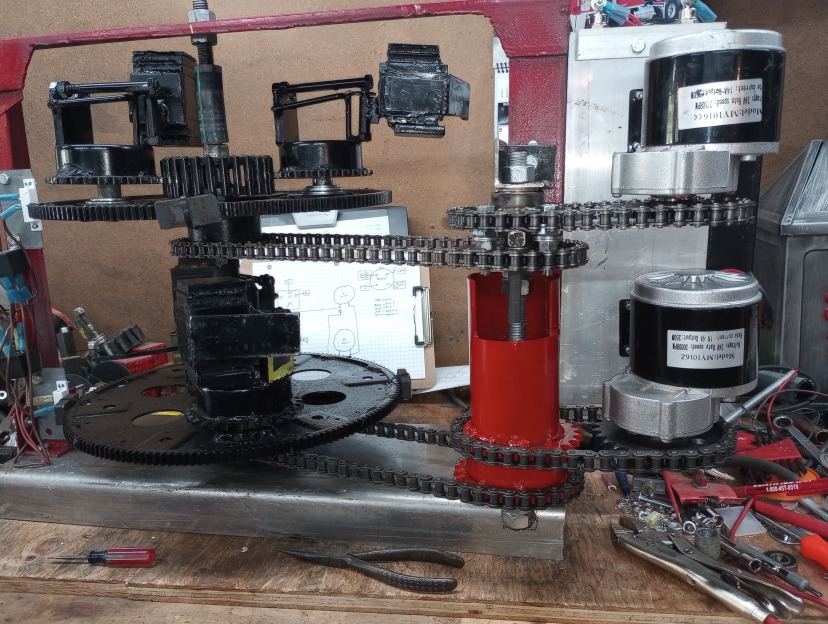

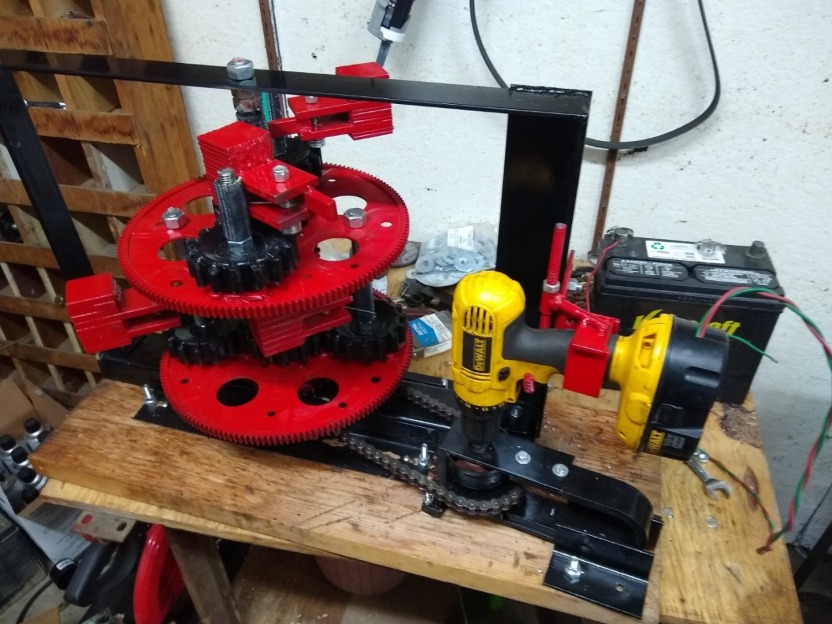

Since the motor and speed controller was working so well (on 12v) it seemed natural to add the speed differential control (SDC) to it as well. I started with one actuator, so the PIE would get a speed boost for one half of the rotation which uses two weight pulses per revolution. This would tell me immediately several things. It would indicate if the SDC would be effective on another PIE (repeatability test) and if it would still work with an opposing weight approaching and entering the “neutral/reset” position.

Both results were 100% conclusive that the result was a definite increase in power output!

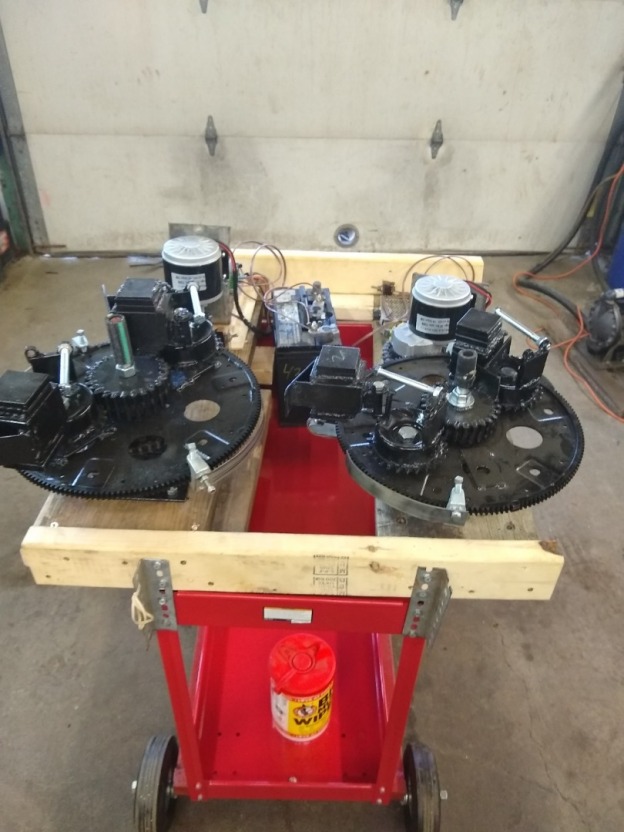

Next was to add a second actuator so the boost would be working with each half of the rotation. A second actuator of identical length (8 inches long) was installed 180 degrees away from the first actuator. Power output seemed very high but because I don’t have a force meter, I simply was not certain. The simple answer was to add a toggle switch in line with the SDC circuit to simply turn the SDC on or off while running the PIE.

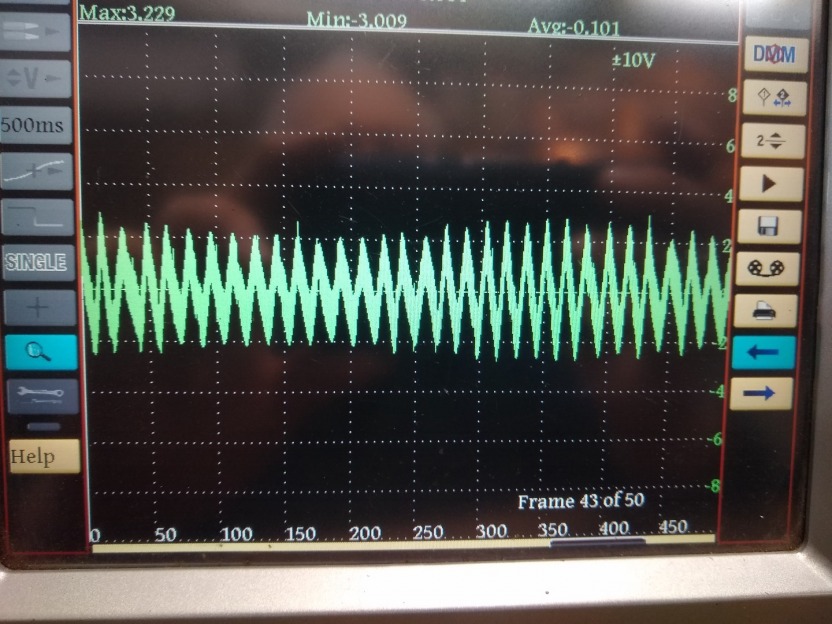

Results of the dual actuator test was amazing! The base speed could be run from 0 to over 100 RPMs, and the action was the same as it was when running on the drill motor. At different speeds ranging from approximately 30 to 100 RPMs, the differential circuit was activated and deactivated at many different base speeds with very powerful results. Judging only by the amount the PIE was moving the bench I would estimate an approximate 50-75% power increase with the SDC active! THIS is the reason I am calling for the version increase from 2.0 to 2.1 on the older PIE.

As a side-note, the PIE 2.1 runs “smoother” with the SDC, and will probably last longer too!

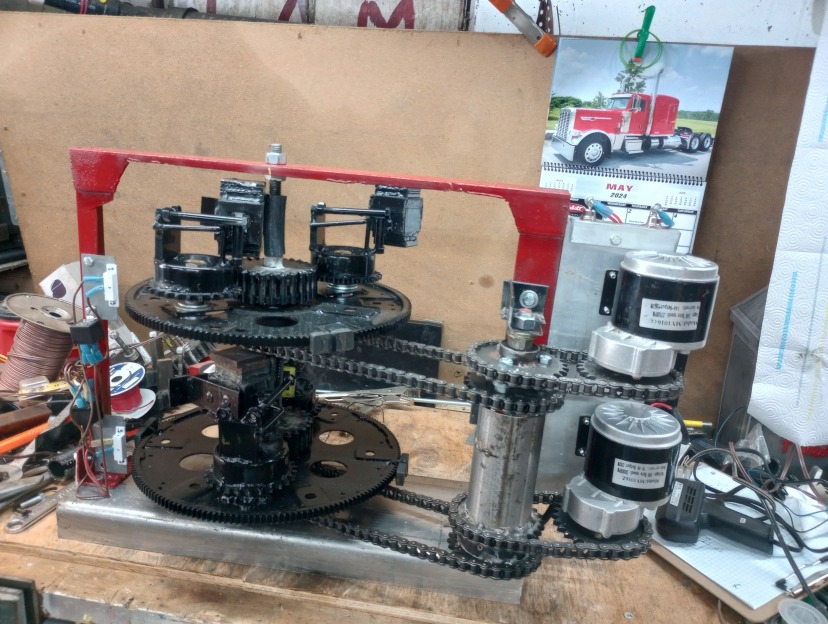

It is now time to “ramp up” the experimental PIE 4.7 with a second weight, and maybe increasing the mass of the weight(s) to around 2kg. In order to do this mass increase, each weight will be using slightly more than 16 linear inches of 3/8”X2” steel along with the BBs, bushing, bolts and weight mounted guide.

As the PIE becomes more “refined”, the total monetary cost of each build increases along with the increase in output power, but when overall quality increases the cost will invariably increase as well.

Videos of the PIE 2.0 changing into a version 2.1 are available on my YouTube channel now, and will also be on BitChute very soon.

## PIETECH Page 12, Happy New Year (Thank God 2020 is Over, Let’s Move Forward!!!)

As 2020 comes to a close, I look forward to what 2021 will bring. “Normal” life was suspended, the MSM news cannot seem to find anything to report that doesn’t have a carefully scripted narrative, alternative news sources have come under fire from big tech and the MSM, but those of us quietly building, designing and experimenting found the slow-down to be a productive time.

It has been a strange year but there has been a great deal of progress by “amateur” researchers and experimenters, so I thought it only right to recap some of the more important inertial & gyroscopic propulsion findings of 2020.

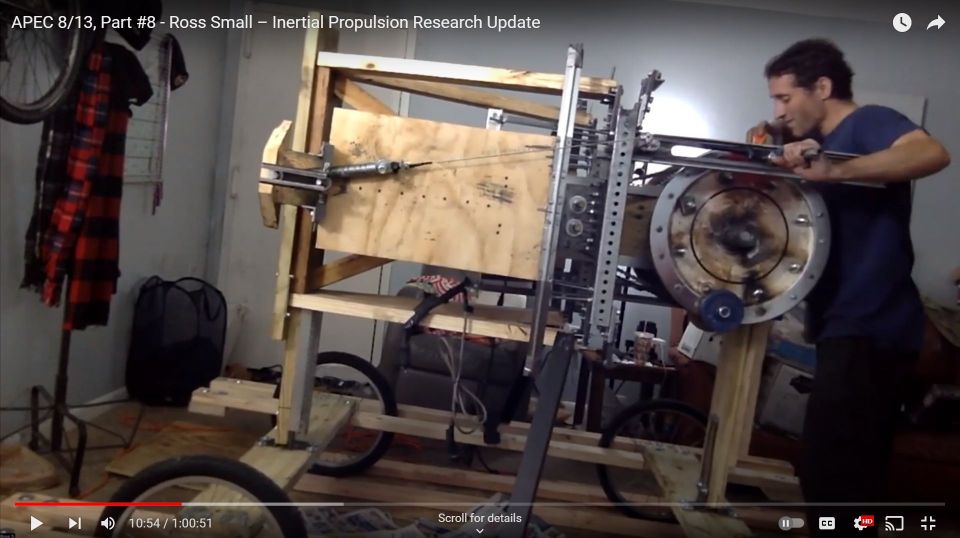

From esteemed engineering professionals to a host of virtually unknown tinkerers (me) and from all parts of the world, approaches to building a fully functional inertial drive system are quite varied but the experiments publicly presented have erased all doubt that this is a valid (although infant) technology which will soon be a budding mainstream industry.

Early in 2020, the early evidence presented and posted on video platforms such as YouTube and BitChute was still drawing a LOT of negative attention from some “learned” “experts” who unequivocally argued that all working units are fakes designed to defraud the unlearned public. Most of these demonstrations were genuine, and many of the online attackers were nothing more than “trolls” attempting to keep honest people from discovering anything meaningful. I am not going to speak for the many brilliant people who have designs of their own, I will only mention the work I have done over the last 12+ months.

In 2019, I had finally built a proof of principal gyroscopic design of my own design when I happened upon the work of Roy Thornson. I saw his design as a highly workable and developable device that should be replicated and improved. So I shelved (but kept intact) my initial work and switched to the Thornson design. I downloaded everything I could find, bought every available technical reference, and eventually even contacted someone who knew Roy personally. Within a month or two, I had a Thornson based replica that could self-propel across a workbench and I was “hooked”.

I decided that because I had built a working model that could easily “go missing”, the safest way to keep both it and me safe was to make every step public, free, and open source. So all the building steps were posted to a blog (this blog) and the machinery itself video recorded and publicly released. I hope that my work can help someone else with their journey.

The things I learned and overcame regarding inertial propulsion are all posted publicly, but here is a recap (I’m sure there are things I missed):

How to make steel spur gears, cheap enough to be disposable.

How to attach automotive flexplates to bearings for the main wheels.

How to make different types of swinging weights.

How important the inner stop is, it does not work without it!

How to make the outer stop a part of the planet gear.

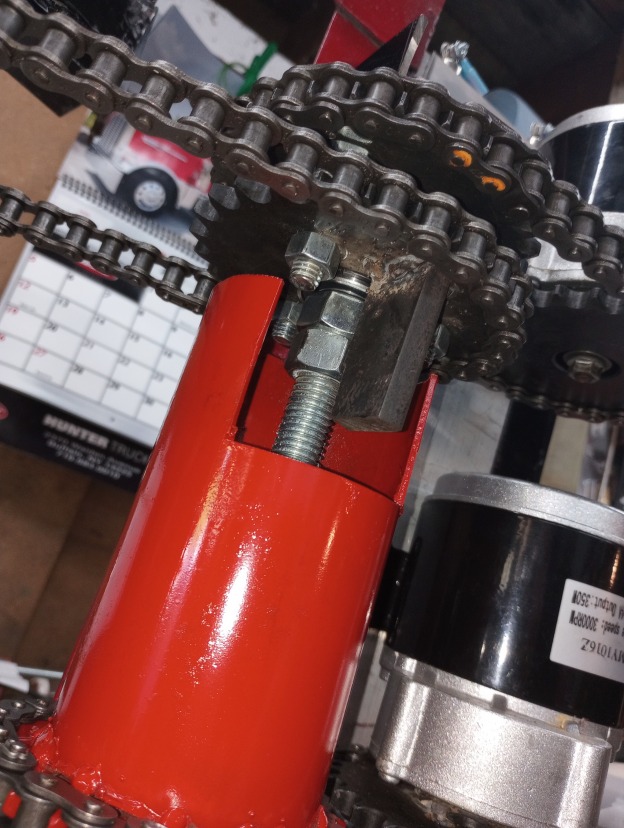

How a slipping belt can cause it to stop thrusting (chains are better).

How different configurations of gears affect performance.

How different timing affects performance and is different for hybrid use.

How a dead blow weight design enhances performance.

How performance is affected by counter rotating wheels.

How to effectively use as a hybrid “helper” drive.

How to make better steel gears.

How to select the correct drive motor.

How to write a manual.

How to build a website.

How to ignore (and delete) negative comments.

How important it is to have friends who understand inertial propulsion (thanks Tokio).

How an eccentric gear design can enhance performance.

How important it is to listen to and commune with my God.

I also learned a whole lot about what does NOT work!!!

There are probably more items to add… Read the blog & watch the videos for details including some failed tests, early tests, designs that work, and designs that don’t.

I already have 2 design changes in mind for the first part of 2021, it should be exciting! I hope others get busy building too! I also hope everyone stays safe. Happy New Year!

## PIETECH Page 11, PIE 4.6 Eccentric Drive Gearing

12/23/20 PIETECH Page 11, PIE 4.6 Eccentric Drive Gearing

I was going to be putting my effort into duplicating the dead blow weight so that I can test the first wheel with 2 weights, and I can build a second wheel to go with the first one. However, when I was doing the propulsion testing with the single wheel, I noticed that as by battery started running down propulsion was diminishing. This was found to be a “slow-down” of the motor during the critical “power-stroke” (those who have read my manual know what that means) causing propulsion loss. To compensate, I manually turned the knob on the speed controller during slow speed operation. Naturally, I did not meet the correct RPM every time, but I noticed that if I overshot the running RPM at exactly the right moment, the PIE 4.6 would lurch forward much stronger.

A friend of mine, who also has been working on his own inertial propulsion drive (YouTube Channel) and I were discussing this. It has been found that changing the time base in mid or quarter turns of the main wheel could enhance the propulsion effect dramatically.

My choices for this concept are to either electrically change the RPMs back and forth or use eccentric gearing to smoothly transition the RPMs thus changing the time base. In the end I may try them both or perhaps someone could find a better method.

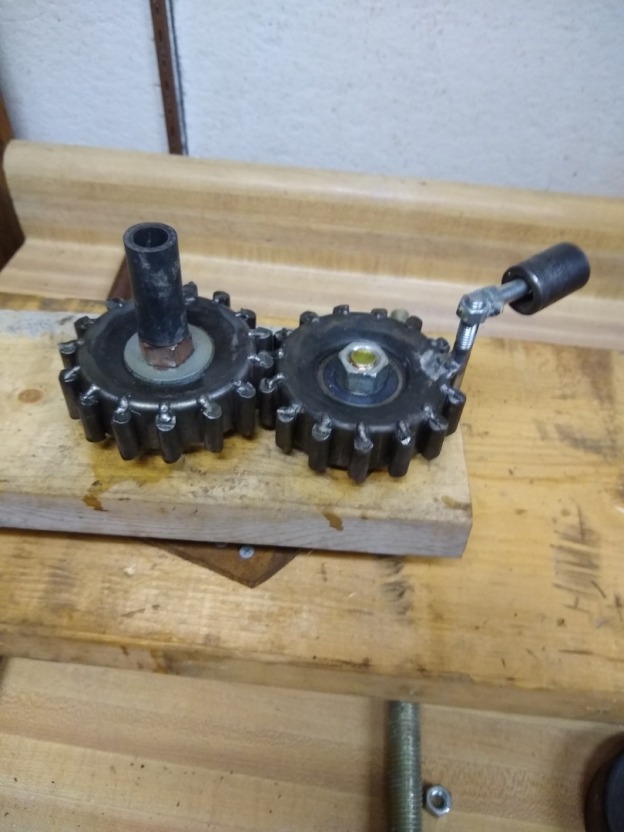

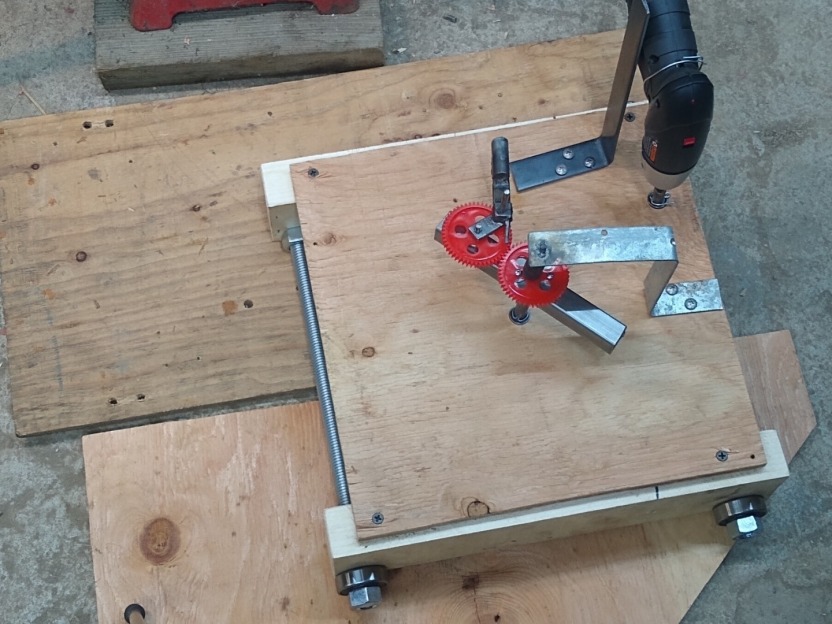

For now, I have started this experiment with the eccentric gear setup. Eccentric gears are essentially a pair (or more) of identical gears or sprockets, with their axle’s not on center in the exact same amount. Since each will “wobble” exactly the same amount, they can be meshed together. When one it rotated at a steady RPM by an outside source (electric motor, etc.) the other one accelerates through half of its rotation and decelerates through the other half.

So, for my experiment I have 2 identical sprockets, each mounted on-center and each on a bearing. Then there are two more identical sprockets fastened parallel with the first ones, each mounted exactly the same amount off-center. The two off-center (or eccentric) sprockets are timed and connected together with roller chain.

Sprocket set 1 is driven by the electric motor. Sprocket set 2 is connected to the PIE 4.6 wheel. As the motor turns at a steady RPM, the PIE 4.6 is accelerating and decelerating constantly. This is timed to start the acceleration approximately halfway through the portion of the cycle when the weight is in contact with the center (inner stop) axle. Timing here is very important and even a few teeth off on the sprocket to wheel timing makes a huge difference. In fact, it has been observed that with the timing off too much, the unit would oscillate forward AND back with significant force.

I know that this design will not be well suited to having multiple weights on the wheel, but I do have a goal in mind that I am not ready to introduce just yet. If this idea works out, it would be capable of enhancing the operation of any of the PIE versions.

The downside is; if I only have 1 weight per wheel the RPM is limited due to transverse (sideways) forces threatening to tear it apart.

## PIETECH Page 9 – PIE 4.5 With New Dead Blow Type Weight

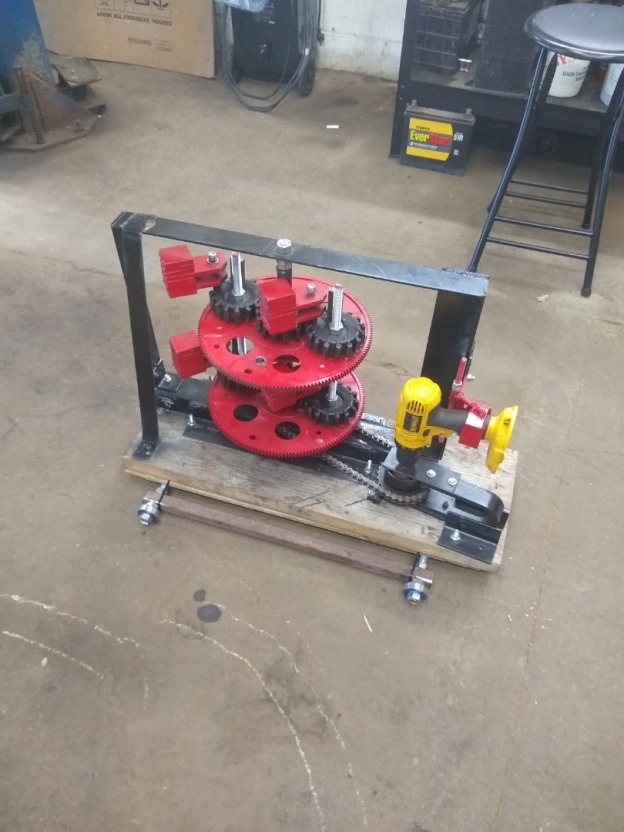

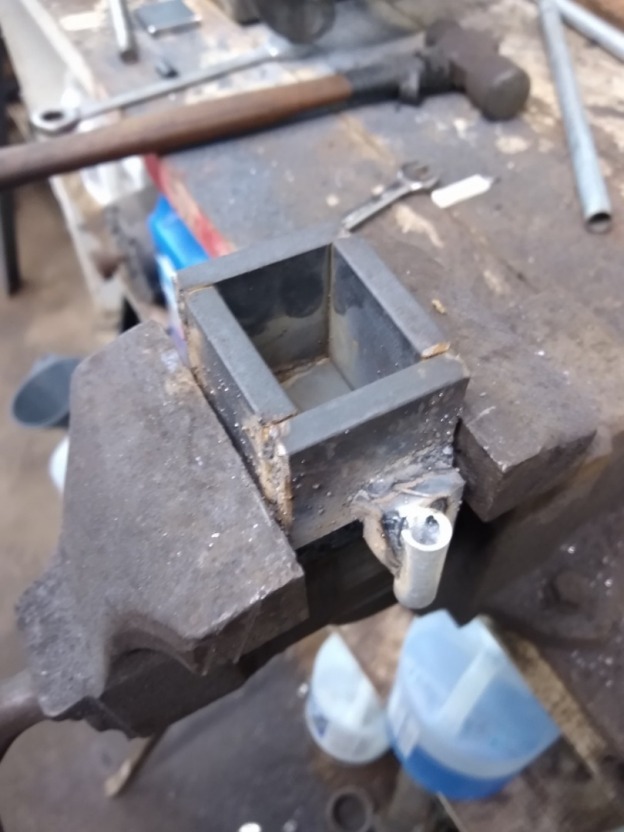

The latest test of the PIE 4.5 is using a 1 kg dead blow type weight. The weight is a steel box with steel shot (BB’s) inside it. It appears to have a lot of promise, as there is virtually no “bounce” when the weight hits the inner stop, and it seems to be dampened where it would contact the outer stop if it had one (has not been installed).

There is a video of this first testing on YouTube and BitChute. The problem however remained that the centrifugal force and impact force did not push in the same direction, which was the reason for Thornson’s “Inner Planet Trap” which would hold the weight and release at the correct time.

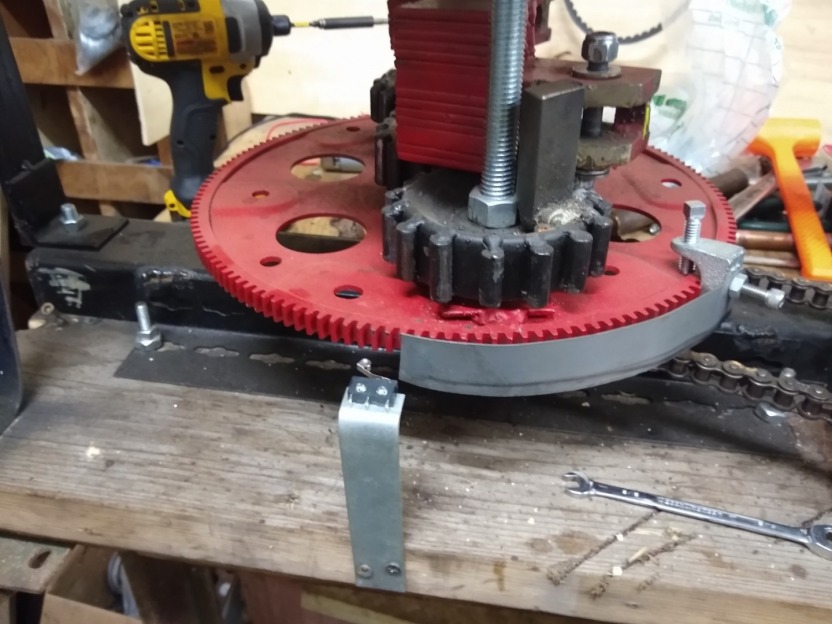

The answer is to install a “guide” on the end of the weight which would keep the weight near the center axle and correct the problem of thrusting in two different directions. This is proving , so far, to be a much improved design. This can also be seen on YouTube and BitChute.

These improvements are now bringing the PIE version up to “PIE 4.6”.

Check out the videos on YouTube and BitChute & thanks for watching!

https://www.bitchute.com/channel/miGkQfBM24NZ/

## PIE 4.5 and My Original Thornson Drive Replication

Hi everyone and welcome to my blog’s new home. I hope that this venue will be of at least the same quality as before, and I really hope that the text is a bit easier to read!

I posted a video on YouTube & BitChute of the PIE 4.5 with 3 gears, 2 gears and just one planet gear on it. There is a bit of controversy as to which is better and what configuration should be considered for the PIE 4.5 to continue. Watch the video and you can plainly see the lack of propulsion with better balance (3 planet gears), and much better propulsion with a fully unbalanced wheel (1 planet gear). Of course, getting rid of the jerking nature of the drive is a primary goal along with stronger propulsive force.

I have gone back and reviewed my recorded data, and videos, going all the way back to the very first truly functioning drive still being referred to as a Thornson Drive even though the stop modifications were already being changed and modified to the design finally used in the PIE system. The wheels (4 of them) all had a single planet gear, they were all running more or less in-sync, and it just plain worked. I am going to put the 3 videos I have of this original unit together into one video and post in soon.

Keeping this in mind, and knowing that I really can get a MUCH stronger forward pulse without increasing the back pulse, the goal remains to pulse smoothly (an oxymoron). For this plan to work, I need 2 or more complete PIE units that produce fairly equal amounts of force and that can run in-sync (with a calculated offset) without actually being physically mounted to the same frame.

Stay tuned to this blog and my video channels as I think some exciting things should be happening soon!

## Censorship?

Censorship?

Well now, after being reasonably ignored for quite some time now, apparently the PIETECH BUILDER’S MANUAL seems to have caught some unwanted attention. Out of sheer convenience, I decided to use the eBay platform as a service for interested people to purchase the manual. After being listed for just two weeks, the listing has suddenly “disappeared” completely from eBay and erased from their archives. After speaking with a genuine human being at eBay they now claim that I must have never had such a listing as they show NO ACTIVITY on my seller account over the last 90 days. Since at the time of this writing, it was listed on eBay 15 days ago and I still have the link to the now non-existent listing saved, both on the PIETECH web page and other media as well, I am very certain that it wasn’t a dream.

This, of course, happened on the same day that YouTube issued another crack-down on anyone speaking about corruption within the US election, immediately removing entire channels for simply voicing an opinion. These are online corporate strong-arm tactics at their worst and simply underline the need for private web sites to voice those opinions and highlight relevant facts.

Maybe we need to start an old fashioned “web ring” as a “No Censorship Zone”.

I have experienced this type of censorship before, but I really was hoping that we as a people had gotten past this covert draconianism (echoes of the “cold war”) but apparently not.

I suppose that I should actually take this as a form of encouragement. After all, if there was “nothing to it” nobody would take the time to censor it and if I weren’t on the right track it would not be perceived as a threat within some corporate-type organization.

I will make a new listing for a place to purchase the manual and I will keep publishing the ongoing work with “reactionless propulsion” as public as possible, after all there is at least some “safety in numbers”.

I will also begin the creation of a private online store so that the likes of eBay and Amazon will have no control over what is listed, said, printed or sold. Maybe I will host my own videos as well… We shall see…

Thanks for letting me rant! Good day.

## PIETECH P.4, Coming Soon, a PITECH Builders’ Manual, Also Continuing the PIE 4.3’s Progress

PIETECH Manual: There has been a “Manual” in the works for a while now. It is coming together well and once it is completed it should be a valuable resource for anyone wanting to experiment with Inertial Propulsion without spending untold hours with trial and error testing and expensive components that may not be exactly what is necessary. I have several reasonably complete drafts sent out to other people familiar with this technology for their opinions and criticism. Below is a preview shot of the Cover and the Table of Contents as it is right now.

I am hoping to have this available before the end of the year!

 PIETECH Manual Cover

There is also a section within the manual that explains the mechanisms which create the driving force in greater detail than has ever been published, to the best of my knowledge. Color photos and detailed instructions means that little or no math is necessary to follow along, build a working PIE 1.0 or 2.0, and gain a better understanding of the inertial propulsion principals proven to work via the PIE.

PIETECH Manual TOC

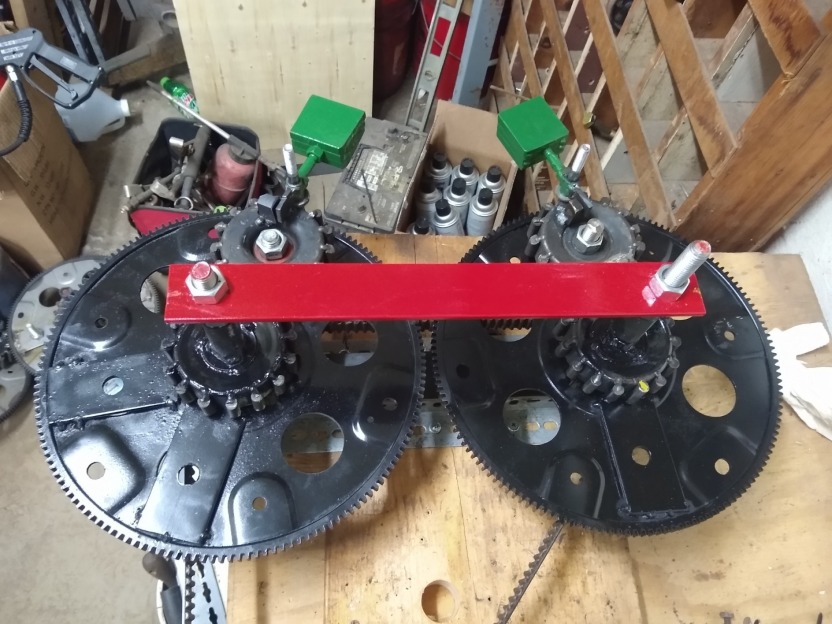

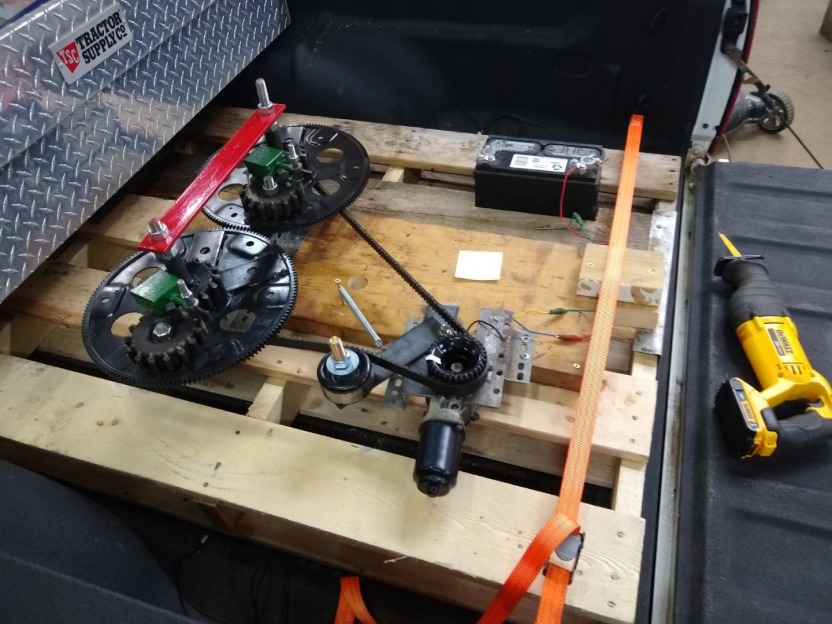

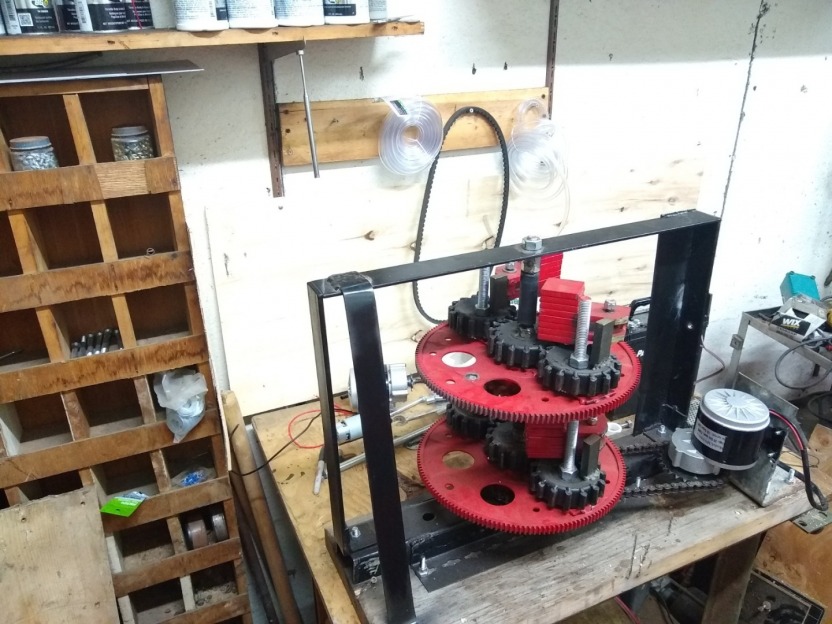

Continuing on with the PIE 4.3: Now I am preparing to expand the PIE 4.3 into a 2-wheeled unit running in the 200 to 300 RPM range. Tests have proven the possibility of running RPMs in the 850 to 1000 range, but the components would need a pretty severe redesign in order to sustain those RPMs for more than a minute or two, so I am planning on staying under 500 RPMs for now.

Component Failure: The damage from running at full speed (around 875 RPM) is significant. Both outer stops were broken (twice each), and the sprocket gears used as the planet gears have many bent teeth.

Much of that damage was incurred when the outer stop(s) broke and the weight could jam the assembly. That is also when timing would jump.

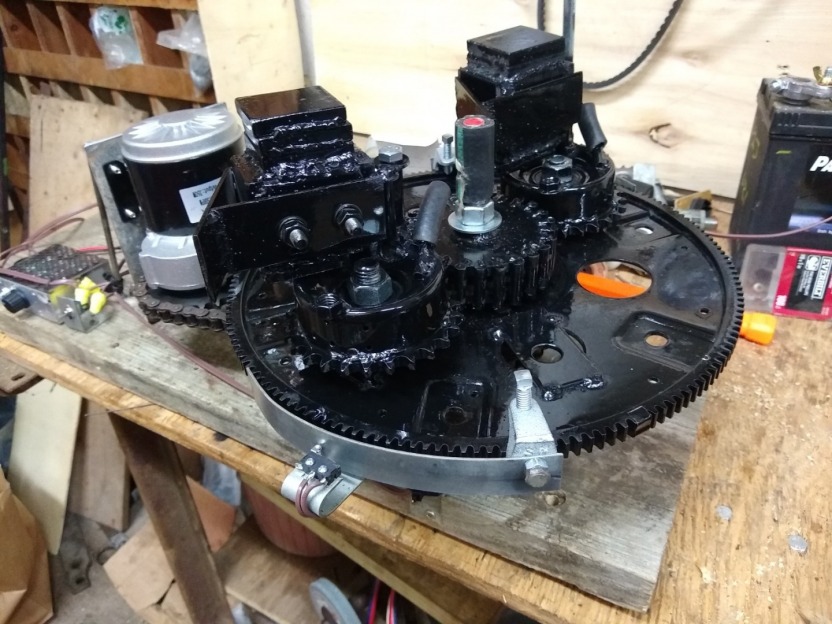

 “Overspeed” Gear Damage

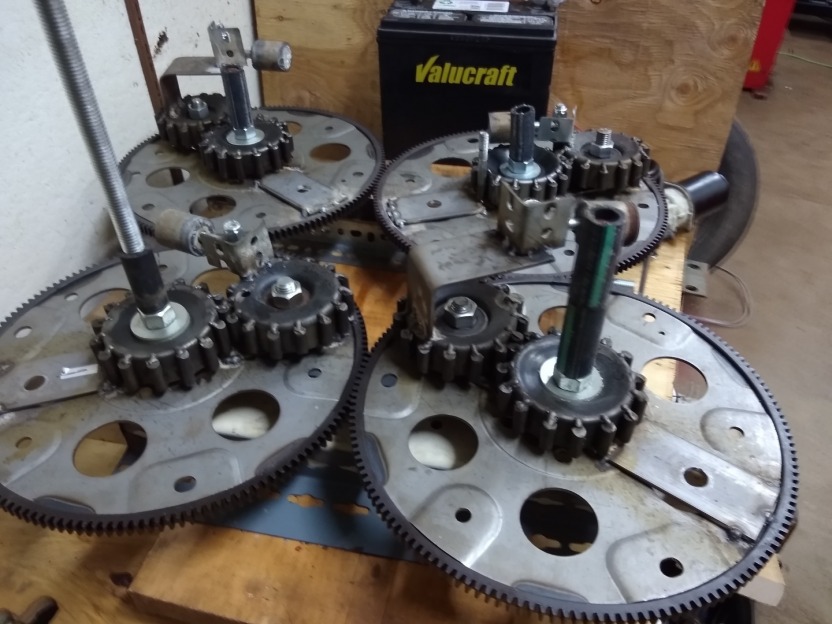

Possible Gear Changes: Notably the sun gear is completely undamaged! Since there is no damage there and considering the severe pounding the gears in the PIE 2.0 suffered with only minor issues (spot welds breaking), I am reluctant to purchase expensive spur gears which will absolutely have weaker teeth than my homemade ones. Better welding, and perhaps a coating should make perfectly acceptable gears that will stand the abuse of slinging the PIE’s weights.

Sprockets for Now: I will probably continue to use the sprockets as planet gears for now, but if they continue having damage issues they will need improvements to minimize the problem.

The sprockets I am using in the PIE 4.3, they are 40A26 sprockets with a 1” center hole. When I weld in the rods, I could skip every other space and that would make 13 tooth gears that would be much stronger and mesh with better precision than just welding rods to a flat pulley.

Those sprockets are very inexpensive from https://www.surpluscenter.com (around \$3 US each at this time) and they are easily welded.

 40A26 Hubless Sprocket

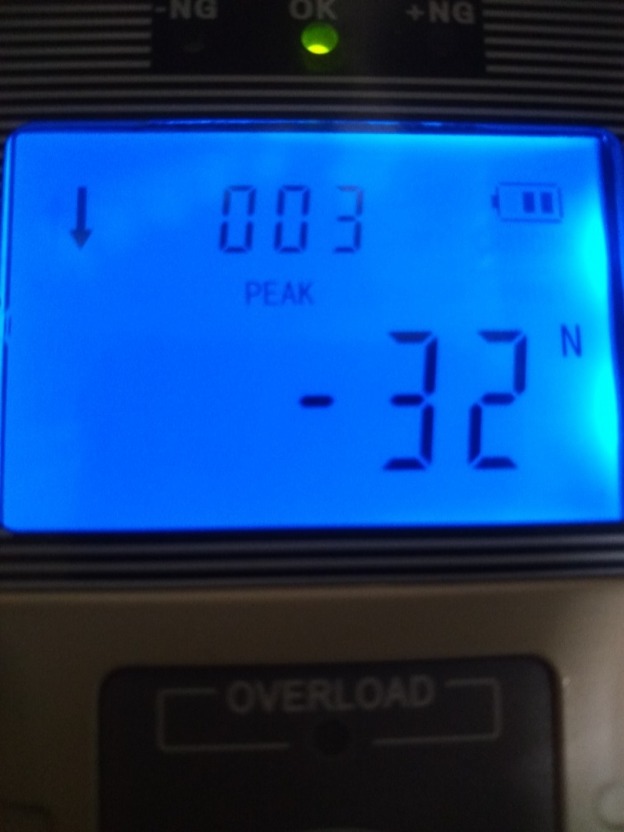

Adding to the PIE 4.3: I now know for a fact that the PIE 4.3 produces 20 oz. of thrust at 275 RPMs, and it runs smoothly at that speed. A second wheel is being added, and it will need to be timed to the first wheel, so a chain drive is being planned out for the drive. I would ideally be able to test with both synchronized “sympathetic” spin wheels and also test with synchronized but “opposing” spin wheels and switch directions as easily as rerouting the chain and having a second set of weights. Time will tell how that works out.

Wheel Configuration: It is VERY tempting to stack the wheels up for this higher speed unit, like the PIE 2.0, but I think it should be a side-by-side to make the switching of directions as simple as possible. I suppose the question should be regarding the placement of the second wheel. Beside the 1st one or in front of it? Perhaps that is something else that should be “changeable” for experimentation purposes as well…

MORE TO COME SOON

## Volume 2 Page 15, PIE 4.0, The High Speed PIE:

PIE 4.0

The latest incarnation of the PIE is kind of a step back to an earlier design as well as a step forward to push the limits of PIETECH possibilities.

I am using a single wheel (for now) with a much lighter weight, even lighter than the PIE 1.0 design. I am trying out a quiet gear set which uses a 14mm pitch timing belt as the teeth which is fastened to the same size (3.5″) steel pulley as used on the PIE 1.0 & 2.0, and although it is quieter I am not sure if the teeth are robust enough to use as a spur gear.

Initial testing of the PIE 4.0 is very encouraging, although there are some small issues arising from the increased speed which has currently been measured at just over 750 RPMs. The most serious issue has been the used motor I pulled off of the storage shelf. Although the 110 volt motor was marked as “Good” because it runs well without a load, it quickly overheats and shuts down when it is turning the PIE4.0. The other issue is the soft gear design which seems to work well most of the time, but has “slipped” out of time on several test runs. I may revert to the welded steel gears before I am done since I still do not feel that purchasing expensive spur gears in this size range, just to risk having them destroyed if the design fails elsewhere, is an acceptable risk. Eventually I am sure that it will become necessary in order to achieve high speeds for extended periods of time.

The lighter weights (2 oz. including the pivot bushing) are actually performing better than expected as thrust becomes readily apparent in the 100 to 200 RPM range, although a better study of this is required.

The PIE 4.0 has only been bench tested so far, but it easily moves my bench around when it is clamped to the surface of it. Since the PIE 2.0 was just barely able to move the bench, I am encouraged to keep pushing forward with this high speed unit.

I have received a number of comments on YouTube, Bit Chute and by other means regarding the inefficiency of this design, and how other designs are soooo much more efficient and can produce these vast amounts of thrust, how this will never work and I am wasting my time chasing this dream.

I have been pointed towards many fine inventor’s works and have had private message conversations with some about some of these.

Here is the deal:

1- I am going to pursue this to some sort of conclusion, it will either be successful or not.

2- There are those who want this stopped.

3- There are others who think there is a better way but have not built a prototype.

4- There are those who don’t give a crap but like to make fun of other’s efforts.

5- There is always “self doubt” when trudging through the swamp of the unknown.

6- Do not try to force your opinions on me and I will not try to force mine on you.

6- Tell me it can’t be done and watch me go, but do not get in the way.

I was going to post specifics of this here, but I will not. I respect everyone’s opinions even though I may not agree with them.

Please be respectful and comment any ideas you have, they will be respected in like manner.

One last thought today, “Thank You For Your Interest So Far… More To Come Soon!!!”
